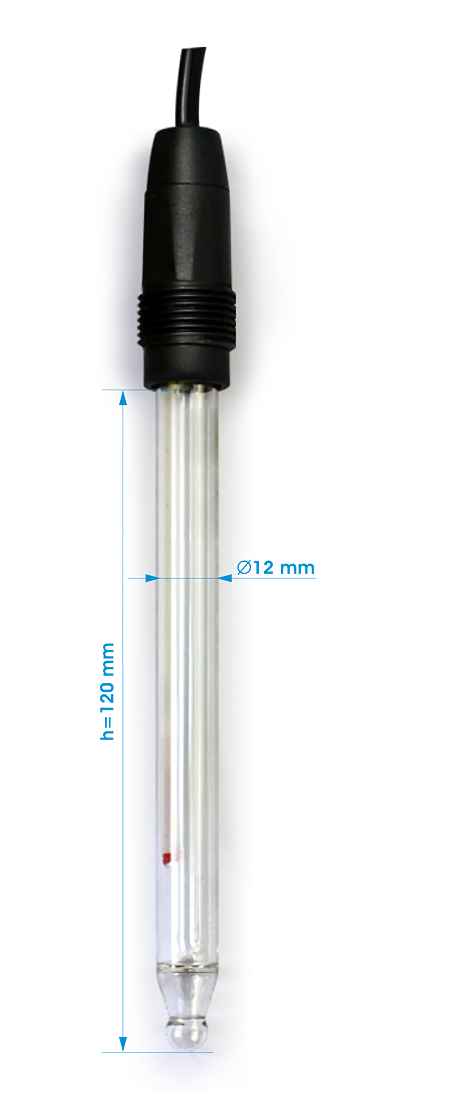

CA543 pH sensor
for Chemical Process
| Order number |
CA5431B |
| former order number |
- |
| |
|
| Specifications |
|
| pH range |
0 - 14 |
| zero point (pH) |
7.00 ± 0.25 |
| temperature range |
-10 - 100 °C |
| Pressure |
0 -6 bar |
| |
|
| temperature probe |
Pt1000/Pt100 optional |
| |
|
| shaft material |
Glass |
| membrane glass |
W02 |
| membrane resistance |
< 800 MΩ |
| |
|
| reference system |
SNEX Ag/AgCl Ref with Ag+ ion trap |
| reference diaphragm |
one porous ceramic |
| bridge electrolyte |
3.3M KCl gel |
| junction |
Double |
| |
|
| electrode head |
PG13.5 thread |
| cable length |
5m |
| connector |
BNC |
| |
|
| cell constant (cm-1) |
- |
| cell type |
- |
| |
|
| indicating metal |
- |
| |
|
| Storage |
- |
