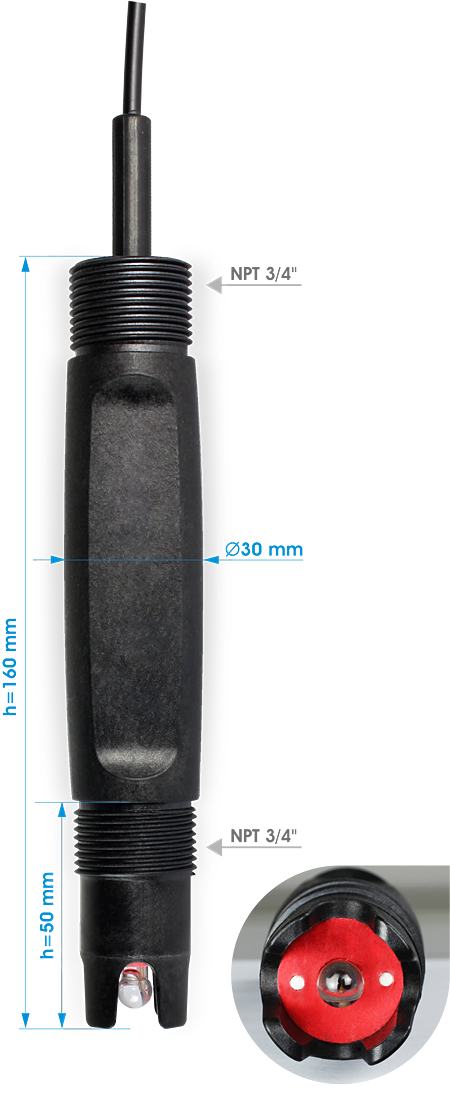

CA788 pH sensor
for pure water, low ion concentration water
| Order number |
CA7881B |
| former order number |
- |
| |
|
| Specifications |
|
| pH range |
0 - 12 |
| zero point (pH) |
7.00 ± 0.25 |
| temperature range |
0 - 90 °C |
| Pressure |
0 -20 bar |
| |
|
| temperature probe |
Pt1000/ Pt100/NTC10K, Optional |
| |
|
| shaft material |
PPS |
| membrane glass |
W28 |
| membrane resistance |
< 500 MΩ |
| |
|
| reference system |
SNEX Ag/ AgCl/ KCl |
| reference diaphragm |
2 porous ceremic |
| bridge electrolyte |
3.3M KCl gel |
| junction |
Double |
| |
|
| electrode head |
NPT 3/4" thread |
| cable length |
5m |
| connector |
BNC |
| |
|
| cell constant (cm-1) |
- |
| cell type |
- |
| |
|
| indicating metal |
- |
| |
|
| Storage |
- |
